CARTEK will be showcasing their new CAN Keypads and Wireless Control Systems alongside the 2027 product line up at Motorsport Technology Expo UK on the 15-16th September.

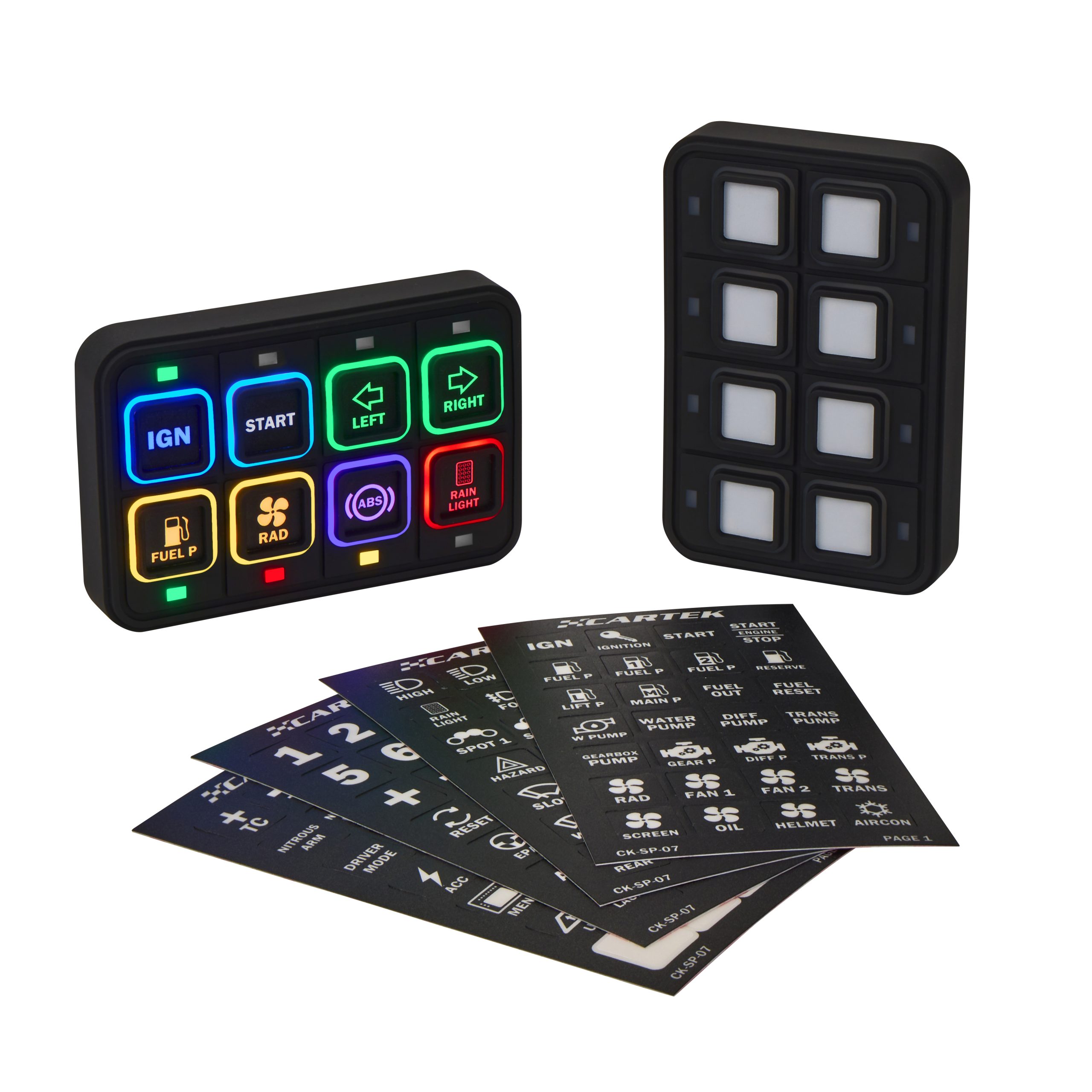

NEW CARTEK CAN KEYPADS
We have developed a new range of 4/6/8 button CAN Keypads that can be used for CARTEK PDM’s or third party CAN devices.
- Full RGB Backlighting on 13mm buttons – choose from 7 colours.
- Sticker sheets provided with Keypads – no expensive button inserts.
- Individual RGB status LED for each button – controlled by CARTEK PDM or can be manually controlled by CAN messages.
- Small compact design and lightweight.
- Formed out of silicone rubber and encapsulated at the rear giving it IP67 ingress protection
- Fitted with Amphenol AT04 (Deutsch DT04) connector.
- Button logic can be configured for either momentary or latching.
- Configured by either a sequence of button presses or by CAN Messages
- Selectable CAN addresses and baud rates to choose from (CAN 2.0)

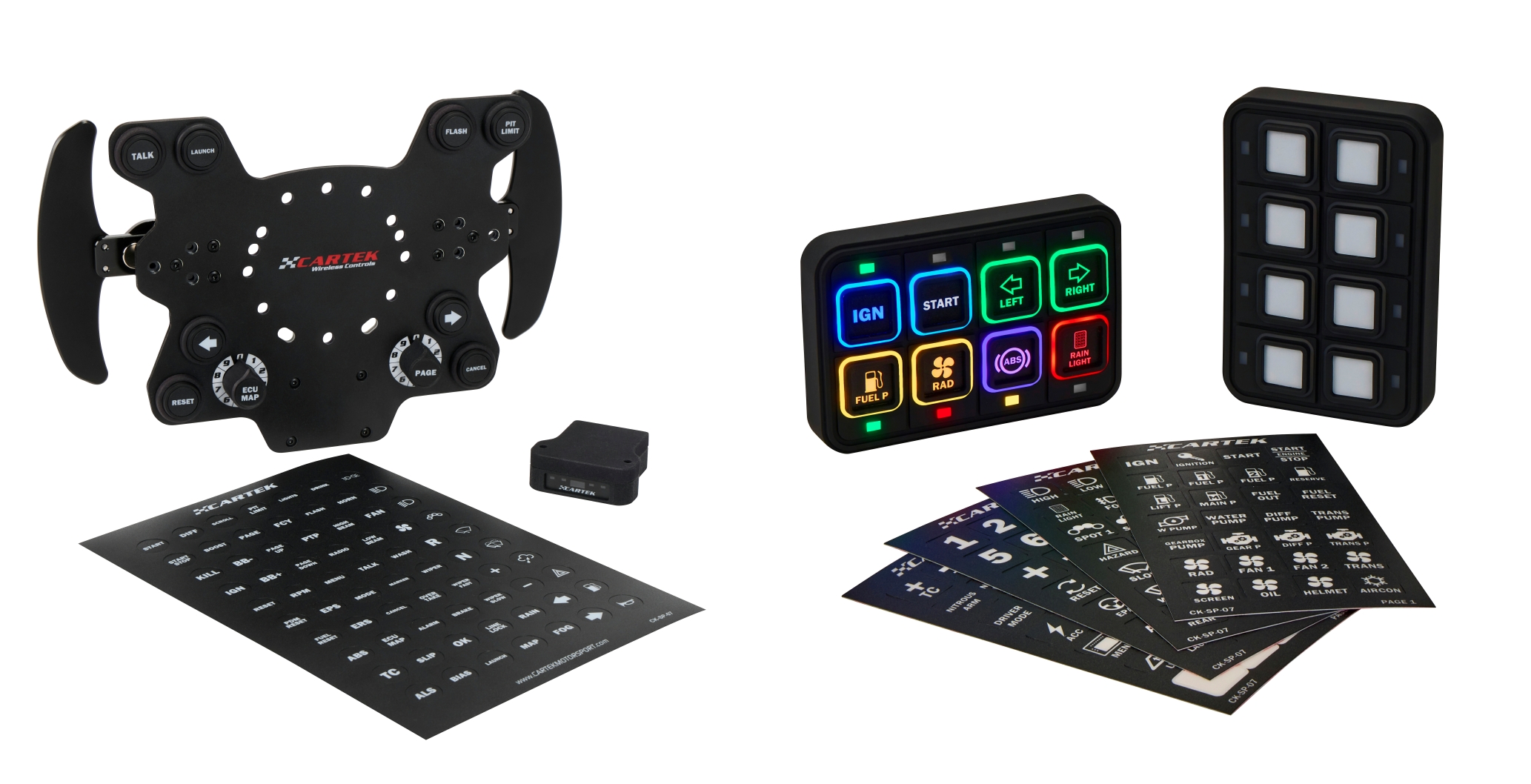

NEW CARTEK WIRELESS CONTROL SYSTEMS
A new generation of Wireless Control systems has been developed, with more steering wheel panel options and new wireless receiver controllers.

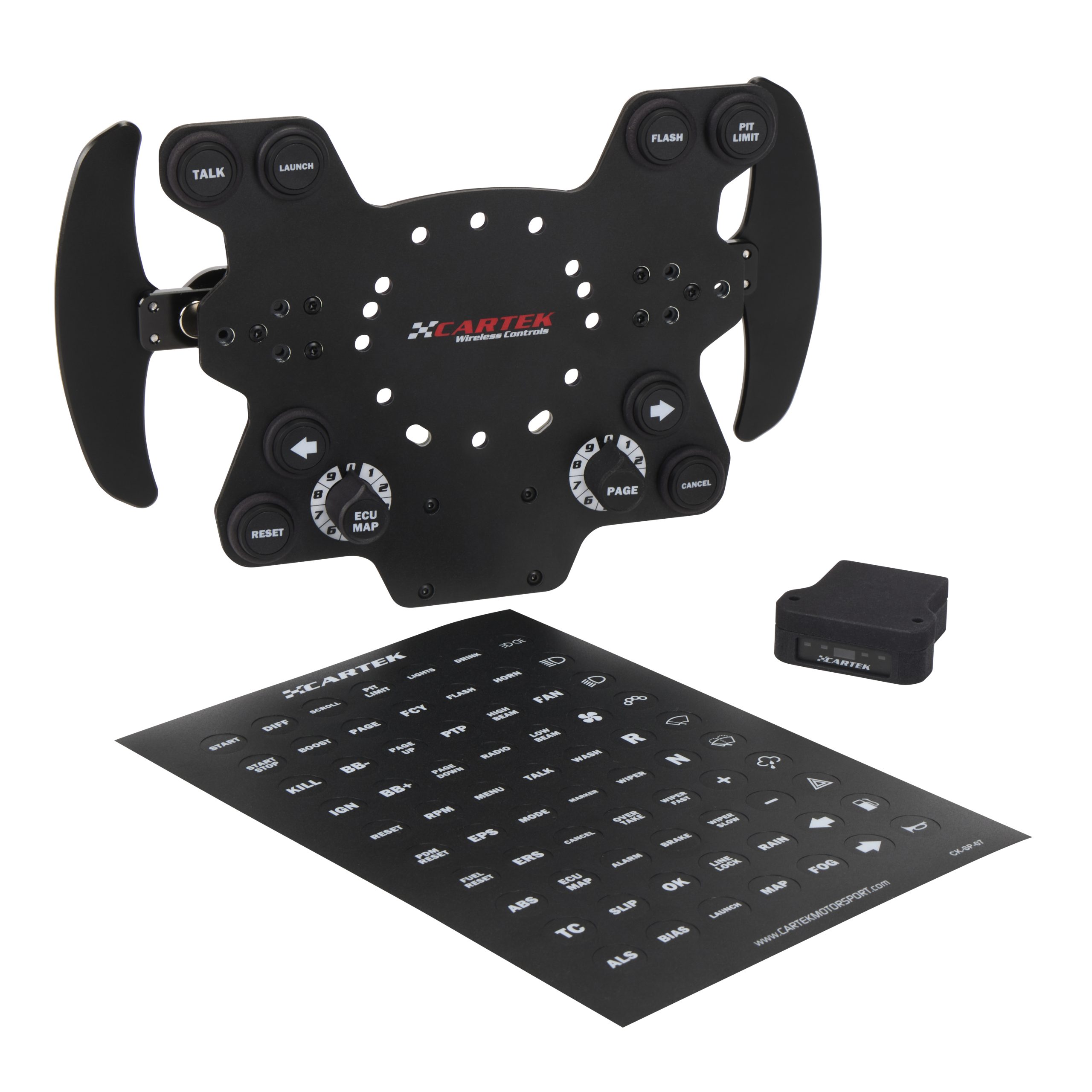

- New redeveloped Wireless Steering Wheel Panels which can now include rotaries switches and paddle-shifts alongside 8 tactile buttons.
- Sticker sheets provided with steering wheel panels – no expensive button inserts.
- Steering Wheel Panels are now USB-C rechargeable with battery status on rear. Battery can last 3 months (low usage) between charges.
- Choice of two new Wireless receiver controllers – Club and Pro. Infrared receiver and controller are now built into one small unit.
- Wireless Receiver (Club) features 10 low side outputs (0.5A each) and 1 solid state relay. Fitted with 9 way D-sub connector.
- Wireless Receiver (Pro) features CAN, 3 low side outputs (0.5A each) and 1 solid state relay. Fitted with 15 way D-sub connector.
- Wireless Receiver (Pro) CAN communications designed to control CARTEK PDM’s or third party CAN devices. Selectable CAN addresses and baud rates to choose from (CAN 2.0)
- RGB Status LED indication on wireless receivers.
- Wireless Receivers configured by either a sequence of button presses or by CAN Messages (Pro only)
More information on both products will be released soon.
