CARTEK CAN KEYPADS

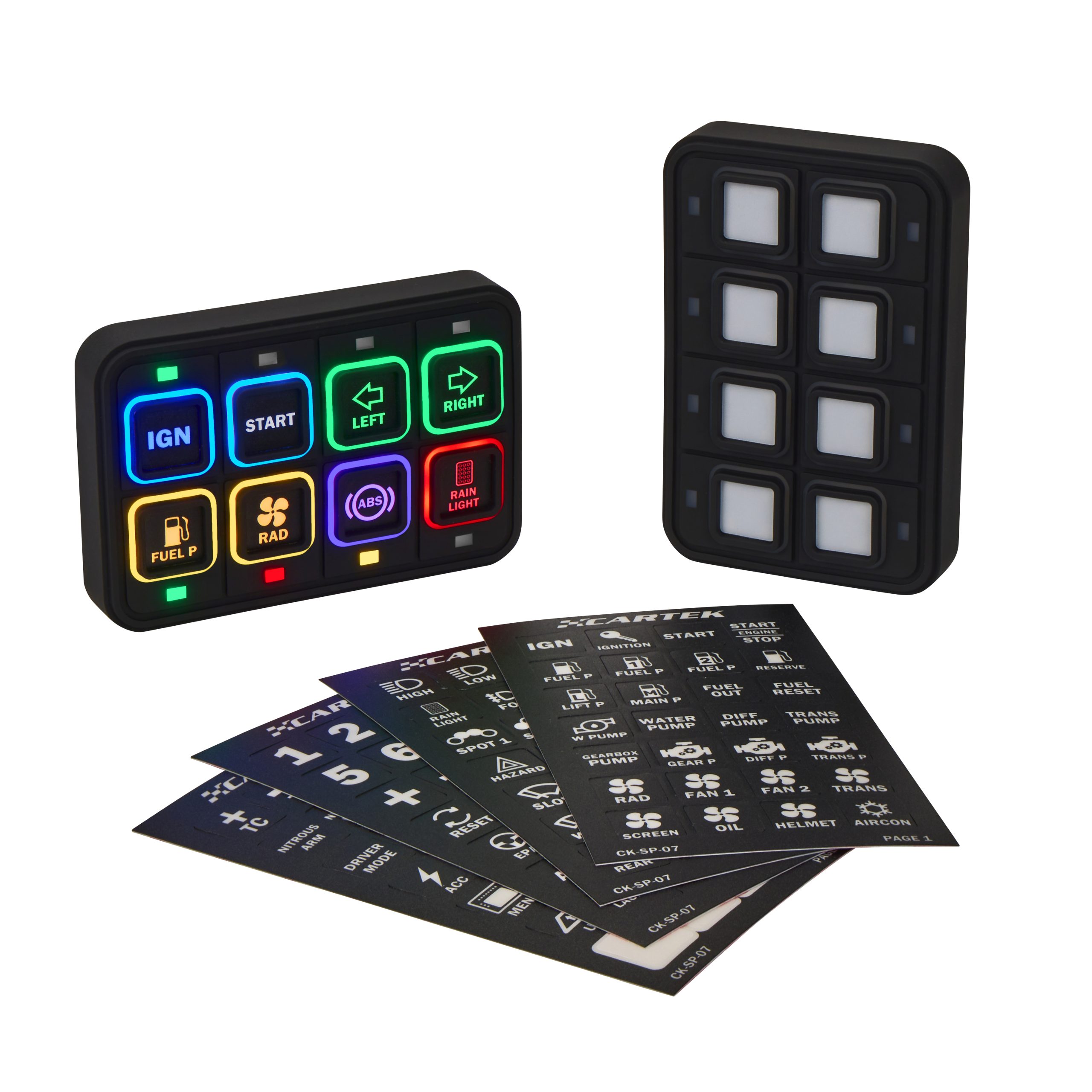

CARTEK offers a range of 4/6/8 button CAN Keypads. These CAN Keypads come with RGB Backlighting and individual RGB LED status indicators as well as sticker sheets giving the end user plenty of choice when it comes to customisation. CARTEK CAN Keypads can be used to control any CARTEK CAN-based PDM as well as third party CAN devices.
KEY FEATURES
EASY TO CONFIGURE
Configuration of the CAN Keypad can be completed by holding down two buttons on power up and following the LED pattern sequence. Configuration can also be completed by CAN messages.
SMALL FORM FACTOR
CARTEK CAN Keypads are incredibly small and lightweight (starting from 48g). Fully encapsulated – designed for the harsh environments of motorsport
FULL CUSTOMISATION
Each button has individual RGB backlighting as well as individual RGB status LEDs which can all be configured. Sticker sheets come included with the CAN keypad so you don’t have to purchase additional expensive rubber inserts.
CARTEK PDM CONTROL
CARTEK CAN Keypads have been designed to easily integrate with the CARTEK PDM-4C and PDM-8C. You can use any of the buttons to turn on any of the outputs or auxiliary inputs of the PDM. The status of the outputs on the PDM will also also be replicated on the keypad status LED’s.
MOTEC PDM INTEGRATION
The CARTEK CAN Keypads are also compatible with Motec PDMs and can be configured using the Motec PDM software. The Motec PDM can control the status LED on each button and the brightness levels. The background colour of each button can still be selected through the configuration mode.
THIRD PARTY CAN INTEGRATION
3rd party CAN devices can send CAN messages to control the status LED’s, pushbutton background colour LEDs as well as the brightness levels. The CARTEK CAN Keypads also transmit the button status, heartbeat counter, and serial number on dedicated addresses which can be received by 3rd party CAN devices.
GENERAL FEATURES
- Full RGB Backlighting on 13mm buttons – choose from 7 colours.
- Sticker sheets provided with Keypads – no expensive button inserts.
- Individual RGB status LED for each button – controlled by CARTEK PDM or can be manually controlled by CAN messages.
- Small compact design and lightweight.
- Formed out of silicone rubber and encapsulated at the rear giving it IP67 ingress protection
- Fitted with Amphenol AT04 (Deutsch DT04) connector.
- Button logic can be configured for either momentary or latching.
- Configured by either a sequence of button presses or by CAN Messages
- Selectable CAN addresses and baud rates to choose from (CAN 2.0)
